Opis
FUTURISTIČKI DIZAJN
• Unutarnji digitalni zidni sat sa vrlo tankim kućištem

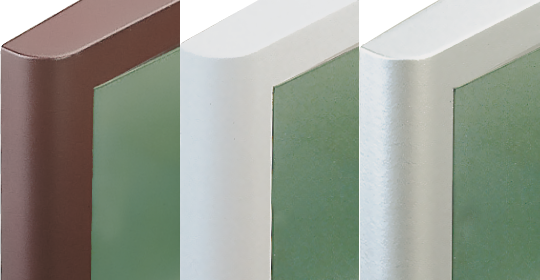

• Boje kućišta: Aluminij, bijela ili tamnocrvena
• Široki kut gledanja: 160 ° i izvrstan kontrast
ZAJEDNIČKE ZNAČAJKE
• ABS kućište, za unutarnju uporabu, IP40.
• Nosač za ugradnju na zid sa protuprovalnim sustavom.
• Raspon radne temperature: od 0 do 50 ° C.
• Programiranje i podešavanje vremena putem 2 tipke.
• Napajanje: 2 ili 4 LR14 (C) baterije ovisno o modelu (koja traje više od 3 godine)
• Opcija: vanjsko napajanje 230 VAC / 6 do 24VDC TBT napajanje.
• Stalno sigurnosno kopiranje podataka.
• Programirani rasporedi ljetnog vremena i više zona vječni kalendar.
• Nosač za ugradnju na zid s ugrađenim 6-24V TBT napajanjem.
• Načini prikaza 12 ili 24 sata.
• Veličina znakova 70 ili 140 mm.
Dokumenti
Dokumenti za preuzimanje:
LCD satovi Cristalys – Tehnički podaci – kratki opis (eng.,pdf)
Izvedbe proizvoda
Izvedbe proizvoda (šifre za naručivanje):
| Indoor LCD clock. |
| Batteries included except for TBT and PoE models |
| 3 casing colours available Aluminium (A), White (B), Burgundy (D) |
| Please specify the colour when ordering. Colour corresponds to last figure (x) of the product code |
| Example: Cristalys 7 AFNOR Battery powered Aluminium casing Color 938131A |
| Opis |
Šifra |

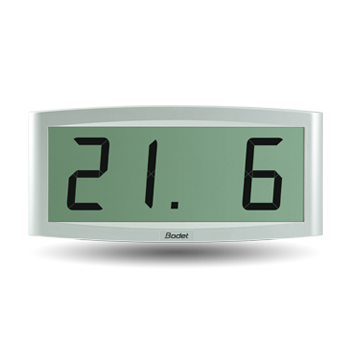

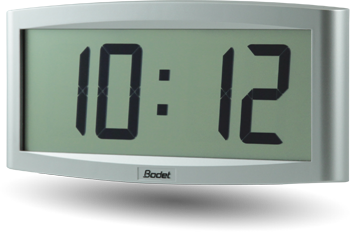

| CRISTALYS 7 |
Hour, Minute, Date – 7 cm digits |
|
| Independent – Battery Quartz movement |
938111x |
| DCF Radio Synchronised – Battery |
938123x |
| 24V Impulse / Afnor – Battery |
938131x |
| 24V Impulse / Afnor – TBT* (6-24VDC) |
938132x |
| DHF Wireless – Battery |
938141x |
| DHF Wireless – TBT* (6-24VDC) |
938143x |
| NTP – PoE |
938173x |
|
|

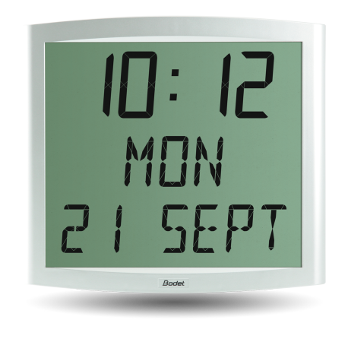

| CRISTALYS DATE |
Hour, Minute, Day, Date, Temperature – 7 cm digits |
|
| Independent – Battery Quartz movement |
938211x |
| DCF Radio Synchronised – Battery |
938223x |
| 24V Impulse / Afnor – Battery |
938231x |
| 24V Impulse / Afnor – TBT* (6-24VDC) |
938232x |
| DHF Wireless – Battery |
938241x |
| DHF Wireless – TBT* (6-24VDC) |
938243x |
| NTP – PoE |
938273x |

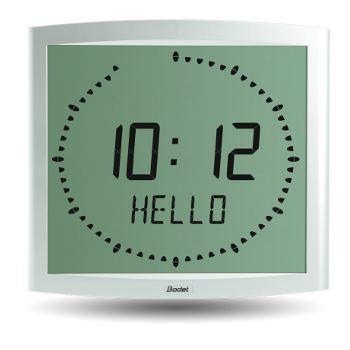

| CRISTALYS ELLIPSE |
Hour, Minute, Second, Day, Date – 7 cm digits |
|
| Independent – Battery Quartz movement |
938311x |
| DCF Radio Synchronised – Battery |
938323x |
| 24V Impulse / Afnor – Battery |
938331x |
| 24V Impulse / Afnor – TBT* (6-24VDC) |
938332x |
| DHF Wireless – Battery |
938341x |
| DHF Wireless – TBT* (6-24VDC) |
938343x |
| NTP – PoE |
938373x |

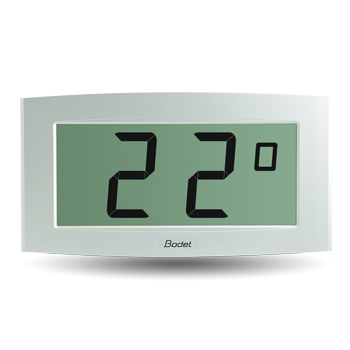

| CRISTALYS 14 |
Hour, Minute, Date, Indoor temperature – 14 cm digits |
|
| Independent – Battery Quartz movement |
938611x |
| DCF Radio Synchronised – Battery |
938623x |
| 24V Impulse / Afnor – Battery |
938631x |
| 24V Impulse / Afnor – TBT* (6-24VDC) |
938632x |
| DHF Wireless – Battery |
938641x |
| DHF Wireless – TBT* (6-24VDC) |
938643x |
| NTP – PoE |
938673x |
| * Add TBT power supply |
|
Bodet jamstvo
Jamstvo u mjesecima (od datuma isporuke): 24
